Custom Magnetic Closure Rigid Boxes

Description

What Is a Magnetic Closure Rigid Box?

A magnetic closure rigid box is a one-piece setup box built from grey chipboard, wrapped in 150 gsm printed paper, with a hinged lid flap that locks on concealed magnets. The flap stays attached to the base, so the box opens like a hardcover book and closes with a single press. No tuck flaps, adhesive strips or tape are involved, which keeps the exterior clean for full-coverage print.

Each box is assembled in 4 layers:

1. A grey chipboard shell cut to your dimensions.
2. 150 gsm printed wrap paper glued over the exterior and folded into the inner edges.
3. 2 flat magnets set into the board before wrapping, so neither magnet is visible.
4. An optional insert: EVA foam, velvet-lined tray, molded tray or cardboard dividers.

Compared with a two-piece lid-and-base box, the attached flap keeps both parts together through retail handling and after purchase. Customers reuse the box as storage, which keeps the brand in view long after the product is opened.

Magnetic Box Styles

UCB produces 4 magnetic structures. All 4 share the same board and wrap specifications. The difference is how each box opens, ships and carries weight.

Flip-Top Magnetic Box

The flip-top is the reference magnetic structure. The lid flap hinges from the back wall and closes over the front, where the 2 magnets meet. Cosmetic sets, watches, jewelry and gift cards are the most common applications.

Collapsible Magnetic Box

A collapsible rigid box fitted with magnets ships flat and assembles by hand in seconds. Flat shipping cuts freight volume and warehouse space for subscription programs and large runs.

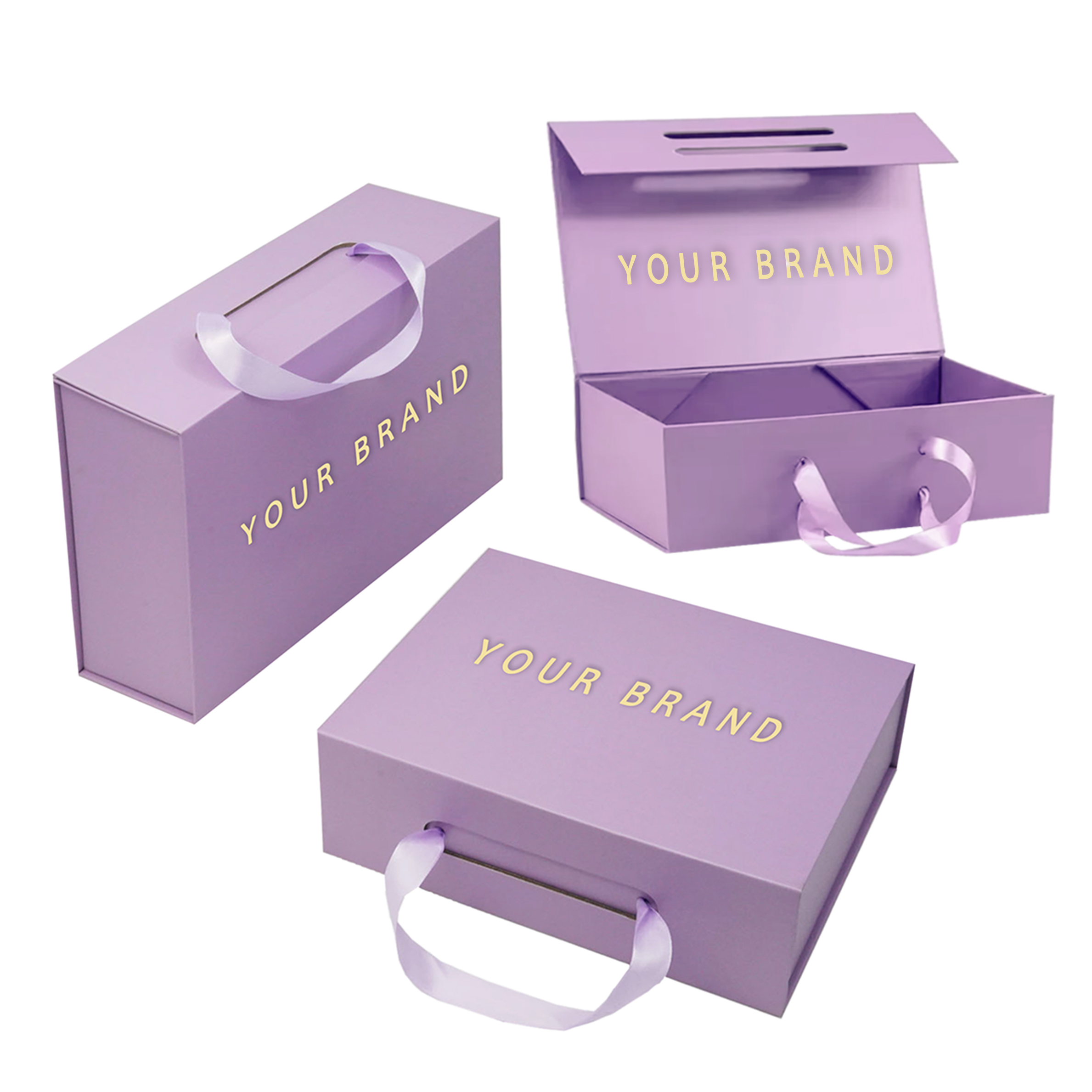

Magnetic Box with Handle

A rope or ribbon handle converts the box into a carry case for wine, candles and corporate gift sets. The handle transfers the full packed weight to the board, so bottles and glass call for 1500 gsm board or heavier. See Custom Magnetic Boxes With Handle.

Magnetic Box with Ribbon Closure

A satin ribbon tied across the flap adds a secondary closure over the magnets and a finished look at the moment of gifting. Wedding favors, jewelry and seasonal editions use this format. Ready formats are listed under Magnetic Gift Boxes.

Custom Inserts for Rigid Magnetic Boxes

A custom insert locks each product in a cut cavity, so nothing shifts when the flap opens. 4 insert types cover most orders:

Insert type and cavity count affect the unit price. Include product dimensions with your quote request for an accurate figure.

Which Board Thickness Does Your Magnetic Box Need?

Choose 800 or 900 gsm board for light items such as jewelry and cosmetics, 1200 gsm for most retail and gift products, and 1500 gsm or heavier for glass bottles, electronics and multi-item sets. Thicker board adds rigidity at the corners and keeps the magnetic flap flat over repeated use.

Thickness values are approximate. Grey chipboard density varies by mill, so the same gsm can measure slightly thicker or thinner.

How Much Do Custom Magnetic Boxes Cost?

Custom magnetic boxes cost $3.00 per box at 50 units and drop to $1.25 per box at 1,000 units. The unit price falls as quantity rises because setup, cutting and print costs spread across more boxes.

These prices cover production cost for small box sizes. Larger custom dimensions change the unit price. The final quote depends on 5 variables:

1. Box size
2. Board grade, from 800 to 3000 gsm
3. Wrap paper type
4. Foil, spot UV and embossing
5. Insert type and cavity count

Magnetic vs Two-Piece vs Drawer Rigid Boxes

Other rigid structures cover different presentations. Book-style rigid boxes open from the side like a cover. Shoulder neck rigid boxes add an inner collar that frames the product. The full range sits under Custom Rigid Boxes.

Magnetic Boxes by Industry

Jewelry and Watches

800 or 900 gsm board with a velvet-lined tray holds rings, necklaces and timepieces in fixed positions. A foil-stamped logo on the flap identifies the brand on a minimal design. Related: Jewelry Gift Boxes and Watch Gift Boxes.

Cosmetics and Skincare Sets

900 to 1200 gsm board with an EVA foam insert holds bottles, jars and droppers in fixed cavities. Inside-lid print carries usage steps or a brand message. Related: Cosmetic Gift Boxes.

Candles

1200 gsm board with a cardboard or EVA insert keeps glass jars upright and separated in transit. Related: Custom Magnetic Closure Candle Boxes.

Wine and Champagne

1500 gsm board or heavier, a handle and a molded insert support 1 or 2 bottles. The magnetic flap presents the label at the moment of opening. Related: Wine Gift Boxes.

PR and Influencer Kits

1200 gsm board with full inside print turns the opening into content. Multi-cavity inserts present 3 to 6 products in a set sequence.

Corporate Gifts

1200 to 1500 gsm board with a debossed or foil logo suits employee gifts, client kits and event packs. The 50-box minimum lets teams order to headcount without surplus stock. Related: Corporate Gift Packaging.

How to Order Custom Magnetic Boxes

Share these 7 details through the quote form or chat support:

1. Box size in inches (length x width x height)
2. Required quantity
3. Box style
4. Date you need the boxes
5. Number of print colors
6. Your name and email
7. Your phone number

Your price quote arrives by email within 24 working hours. The order then moves through 4 steps:

1. Accept the quote to secure your order.
2. Review the digital proof we share with you.
3. Approve the digital proof.
4. Production runs 2 to 3 business days, followed by 4 to 5 business days of shipping.

Artwork specs: vector PDF or AI files, 300 DPI images, 1/8 in (3 mm) bleed, CMYK color mode, fonts outlined. Free artwork help covers sizing, bleed setup and finish placement.
